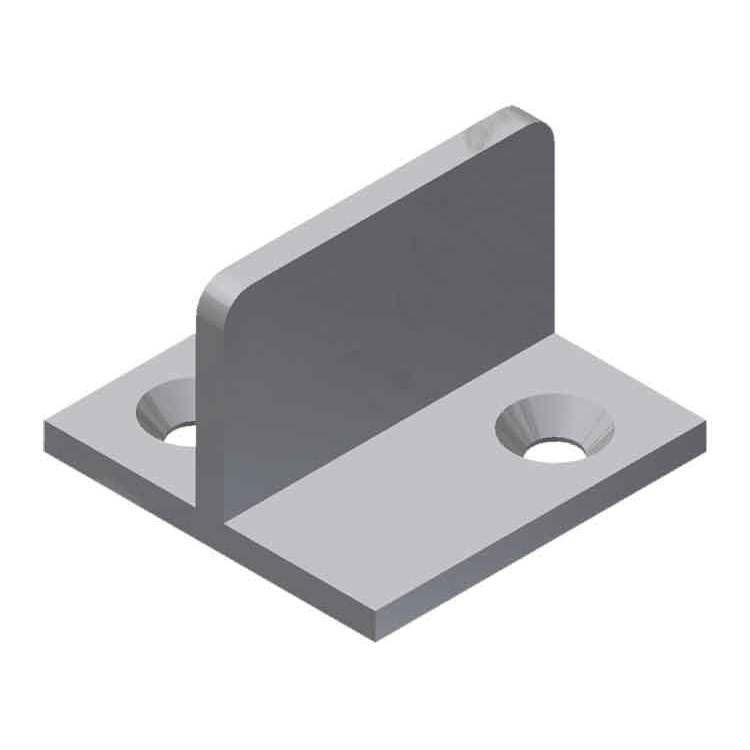

Concealed "T" Guide (1-3/8"min door)-Alum.

For light weight interior wood doors.  Minimum Door Thickness: 1-3/8".
For bi-parting, single sliding, and by-passing applications.

• .pdf Drawing
• 0000338.dwg 2004 Drawing

Purpose:
For light weight interior wood doors that are less than 3'-6" in width and are no less than 1-3/8" thick, the ctg160 is a floor-mounted guide that is positioned under the door where the trailing edge of the door laps the jamb.

Function:
The door must be prepared with a 1/4" x 1" mortised continuous slot that runs the center of the door thickness for the entire width of the door.

Fasteners Included: (2 ea.) #10-16 x 3/4" Flat Head Phillips Sheet Metal Screw, Zinc.

Material: 1/8" Aluminum.
