Minimum Door Thickness: 1-3/4"
Documents & Downloads
Documents & Downloads
.pdf Drawing #CRSC14-TTechnical Data
Technical Data
Purpose:

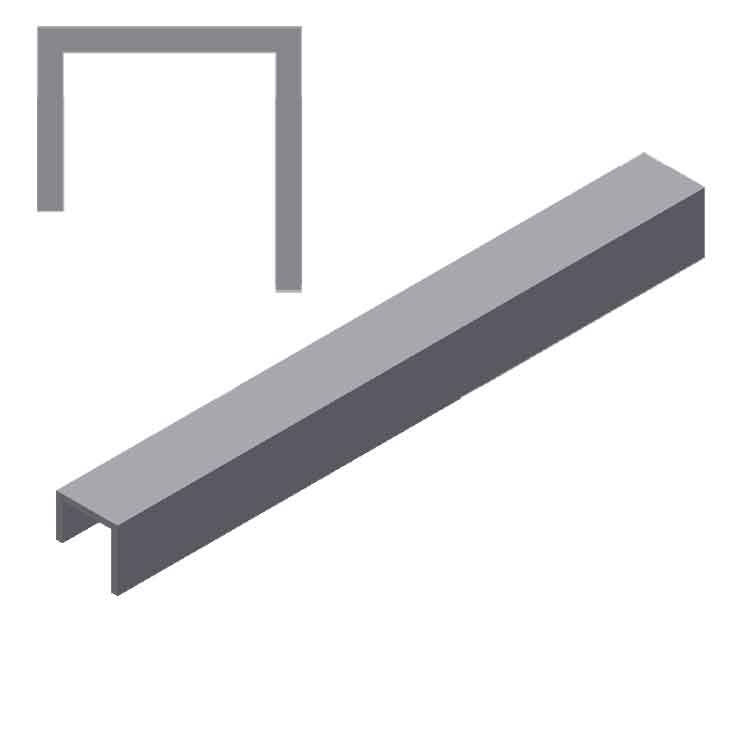

Minimum door thickness is 1-3/4". Acts as an aluminum bottom guide channel that typically mortises into the bottom of a door. Mortise 1-1/4" x 1-1/4". Fasten into place using #10 Flat Head Screws @ 16" Centers. Drilling and countersink for #10 fasteners is done in field by others. Holes can be supplied with material upon request.
No Fasteners Included.
Material: 1-1/4" x 1-1/4" Aluminum Channel, Mill Finish (Non-Anodized).
