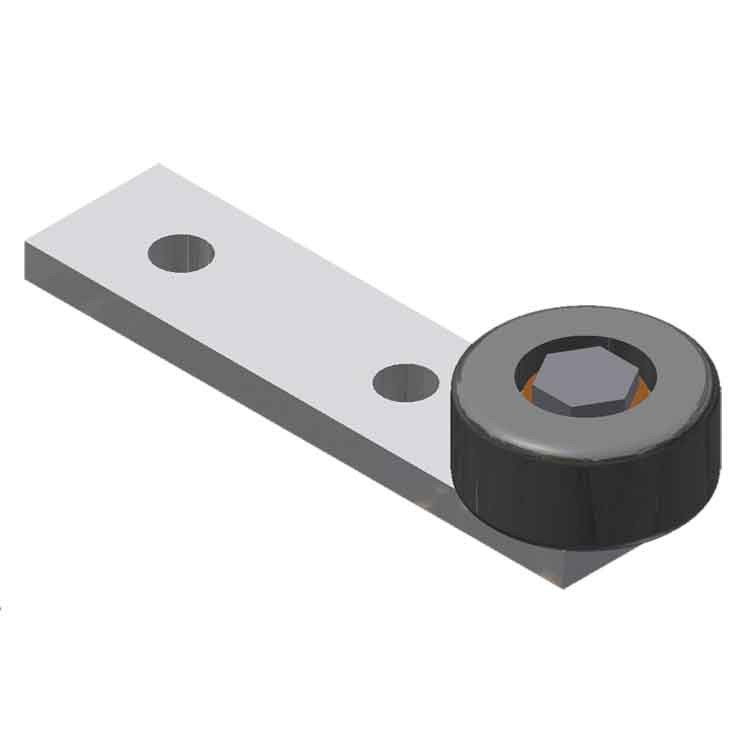

Concealed Stay Roller, Delrin Wheel-Zinc

Minimum Door Thickness: 2-1/2".

• .pdf CRS34 Drawing

Purpose:
For doors no less than 2-1/2" thick.
Ideal for single slide, bi-parting, and by-passing sliding doors where the roller is to be concealed.  Use with #CRSC34 concealed stay roller channel. Bottom of door must be prepared for the 2-1/2" wide x 1-1/2" tall continuous concealed roller channel.

Function:
A stationary floor mounted stay roller that is mounted at the edge of the opening in the direction the door slides, where the door overlaps the opening.  The door with the #CRSC34 conealed stay roller channel slides over the stay roller.

No Fasteners Included.
