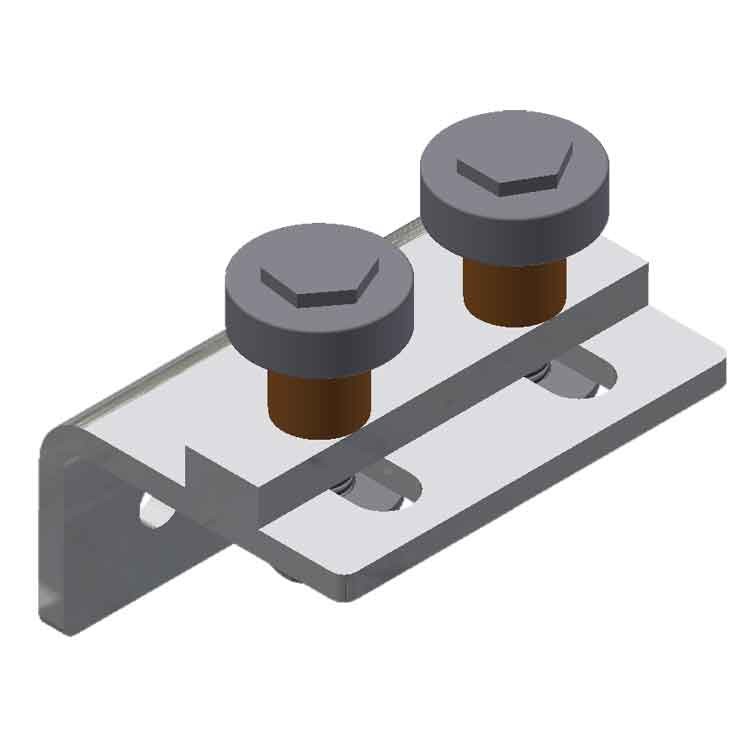

Wall Mounted Concealed Stay DOUBLE Roller-Zinc

2-3/4" Minimum Thick Door

• .pdf Drawing

Purpose:
For doors no less than 2-3/4" thick.
Ideal for single slide, and bi-parting, where the roller is to be concealed and mounted to the face of the wall. Use with #CRSC22 concealed stay roller channel. Bottom of door must be prepared with a 2" x 2" continuous slot to accommodate the concealed stay roller channel.

Function:
A stationary floor mounted stay roller that is mounted at the edge of the opening in the direction the door slides, where the door overlaps the opening. The door with the #CRSC22 concealed stay roller channel slides over the stay roller.

No Fasteners Included.
