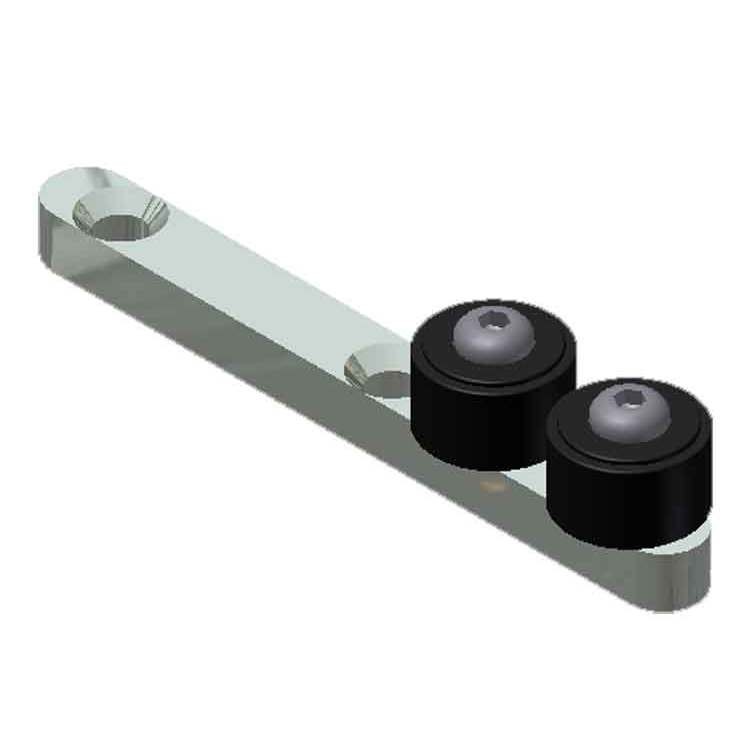

Concealed Stay Roller, 2 Wheel

Minimum Door Thickness: 1-3/4".

• .pdf CRS142 Drawing
• .dwg 2004 Drawing #CRS142

Purpose:
For doors no less than 1-3/4" thick.
Ideal for larger single slide, bi-parting, and by-passing sliding doors where the roller is to be concealed.  Use with #CRSC14 concealed stay roller channel. Bottom of door must be prepared with a 1-1/4" x 1-1/4" continuous slot to accommodate the concealed stay roller channel.

Function:
A stationary floor mounted stay roller that is mounted at the edge of the opening in the direction the door slides, where the door overlaps the opening.  The door with the #CRSC14 concealed stay roller channel slides over the stay roller.

No Fasteners Included.
