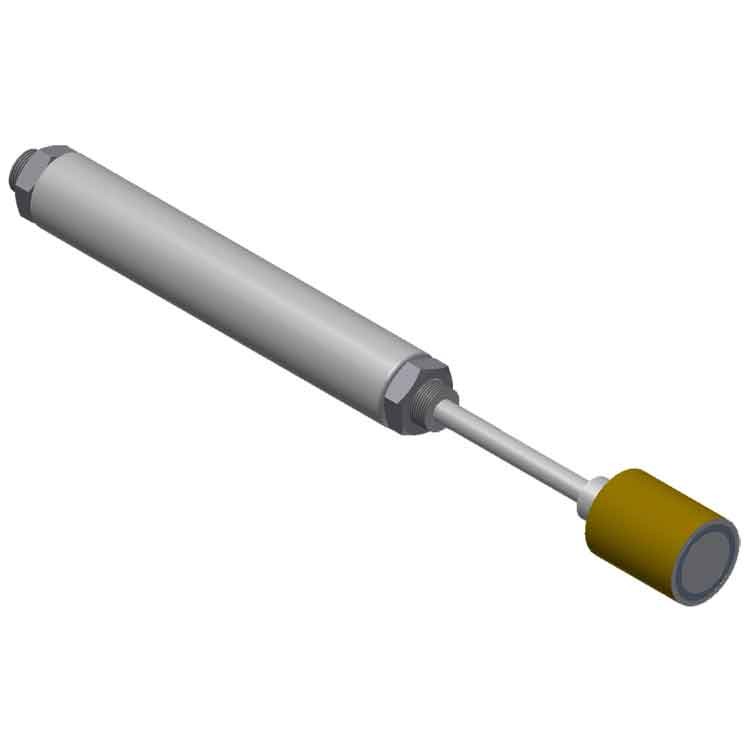

Piston Damper, Sliding Door Soft Closer

• .pdf Drawing
• .pdf Cut Sheet
• .pdf 0003210 Bi-Parting Piston Dampener

Purpose:
Smooth the movements of a sliding door, or to slow a sliding door down during its initial opening and closing operation. This is to be used in conjunction with a concealed track stop or floor stop. This device alone is NOT A STOP.

Function:
When opening the door the magnet on the end of the piston rod adheres to the CP Counter Plate that is attached to the end of the door. The piston extends at a controlled rate until its completely extracted, at which point the door detaches and can be moved at a faster rate. This damper does not contain an internal return spring. Uniform damping during the entire travel of the rod.
Damping force can be adjusted by pulling and turning the piston rod.
